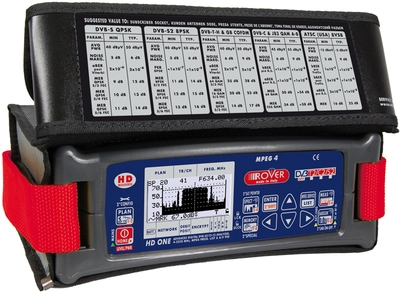

mod. HD COMPACT STC
mod. HD COMPACT STC

MAIN FEATURES:

DVB-S & S2/DVB-T/H (& T2 M-PLP opt.)/DVB-C (C2 opt.), Analog Radio TV & DOCSIS D.S.

  • MEASUREMENTS: MER, MER Versus CARRIER (opt.) , PER, LDPC, BCH, aBER, bBER, EVM, ECHOES, Noise Margin, Level/Power, Real time spectrum analyzer and contellation visualization;
  • CATV MEASUREMENTS: DOCSIS downstream, INGRESS mode, LEAKAGE mode, BARS SCAN and TILT, LTE INTERFERENCE AUTOTEST;
  • Optional: ATSC 8VSB for USA, or GB20600-2006 single and multicarriers for CHINA, or ISDB-T for JAPAN and BRAZIL, etc;
  • HW upgrades in factory: DVB-C2 (up to 31.12.2013);
  • Pre-memorized SAT transponder navigation, can be upgraded but not cancelled, all the main satellite and TV channel plans worldwide;
  • Assisted satellite dish pointing, double input (DUAL LNB) and sat finder functions;
  • All DiSEqC commands, SCR, motor protocol.

NB: All technical features are subject to change without notice.
