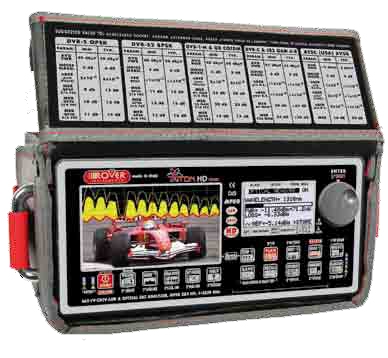

ATOM HD STCOL
ATOM HD STCOL
Main Features
  • TV Tuner from 4 to 1.000 MHz, extended CABLE and GSM bands, SAT tuner 930-2250 MHz, extended
  • Exclusive ROVER AUTODISCOVERY system: automatically recognises and selects analog TV and digital TV COFDM/QAM signals in both measurement and spectrum mode
  • Detects, measures and SHOWS pictures of the MPEG4 HD High Definition programs
  • All worldwide SAT transponder pre-stored and analog SAT pictures
  • Automatic quality analysis: FAIL-MARG-PASS
  • Dual display: new, ultra-bright TFT with excellent resolution
  • Rotational encoder & numerical keyboard
  • Simultaneous visualization of pictures and the program list, MPEG-2 & 4 HD and A/V PID
  • Auto memory, Manual memory & Data Logger
  • Weighs only 2,5 kg, H 11.5 x L 24.5 x D 18.0 cm
  • 2 to 3 hour battery autonomy
  • Supplied with soft bag and hard case for transport, mains adaptor and 12V vehicle adaptor
  • Conditional Access, Common Interface
  • Upgradeable online (USB-2 socket)
  • Bluetooth communication (optional)



Mod. ATOM HD-STCOL DVB-S & S2 / DVB-T (T2 opt.) & H / DVB-C / J83-B & C / OPTICAL / LAN

PROFESSIONAL COMBINED ANALYZER, 4–2.250 MHz, FOR SAT QPSK - 8PSK, TV COFDM, CABLE QAM, OPTICAL & LAN IPTV SIGNALS

  • Pre-memorized SAT transponder navigation in all worldwide satellites and in all the worldwide standard TV channel plans
  • Assisted satellite dish pointing, double input (DUAL LNB) and Sat Finder functions
  • All DiSEqC commands and SCR with automatic search
  • Constellation visualiz., MER, PER, LDPC, BCH, aBER, bBER, EVM, ECHOES, noise margin & level/power measurements, spectrum analysis
  • CABLE MEAS: DOCSIS downstream, INGRESS mode, LEAKAGE mode, BARS SCAN and TILT
  • Options: with ATSC 8VSB for USA or GB20600-2006 single and multicarrier for CHINA
  • MPEG-2/MPEG-4 HD, H264 decoder and Conditional Access · 4.5” 16:9 wide angle TFT LED display
  • Factory HW upgrades: DVB-T2, DVB-C2 (until 31.12.2012)



Code Options
ATO-OPTIC MODULE OPTICAL module with interchangeable “FC”, ”ST”, ”SC” connector, 4-3900 MHz for Spect. & Meas. POWER
AML-OPT AM audio demodulator for French standard SECAM “L”
RIGHTS-SMART-1 Authorisation code for the SMART PRO PC management, SW program
DVB-T/T2/C TV tuner module DVB-T/T2/C



Click here to download specifications
