KTX, KSSM Optic Transmitter

KTX, KSSM Optic Transmitter

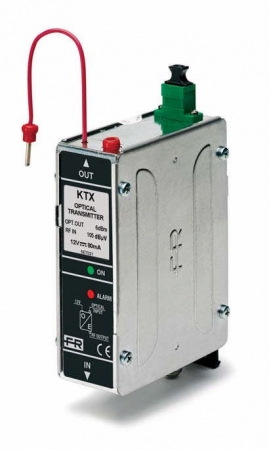

KTX optical transmitter converts an RF TV-Sat signal into an optical signal. SC/ACP connectors on the optical interface.

Key Points

Operating temperature: -10 to +55°C
SC/AP connectors on the optical interface

	KTX
Code
Optical Interface	270686
Optical wavelength (nm)	1310±20
Optical input power (dBm)
Optical output power (dBm)	6
Optical return loss (dBm)	>55
RF section
RF bandwidth (dB)	47-2150
Flatness TV (dB)	±0.5
Flatness SAT (dB)	±1
Link flatness (dB)	±2.5
RF input level dBμV	85÷92
RF output level dBμV	-
RF TEST output level	-
RF return loss dB	>12
Input impedance Ohm	75
Output impedance Ohm	-
RF connector	F female
Optical connector	SC/APC single mode
Operating voltage VDC	12
Power consumption	1
Dimensions (L.×H.×D.) mm	32x89x126
Operating Temperature °C	-10 to +55

Code	Item	Packaging	Quantity	Dimension	Net Weight	Total Weight
Code			Pcs	mm	Kg	Kg
270686	KTX	Single Package	1	235x165x45	0,430	0,460

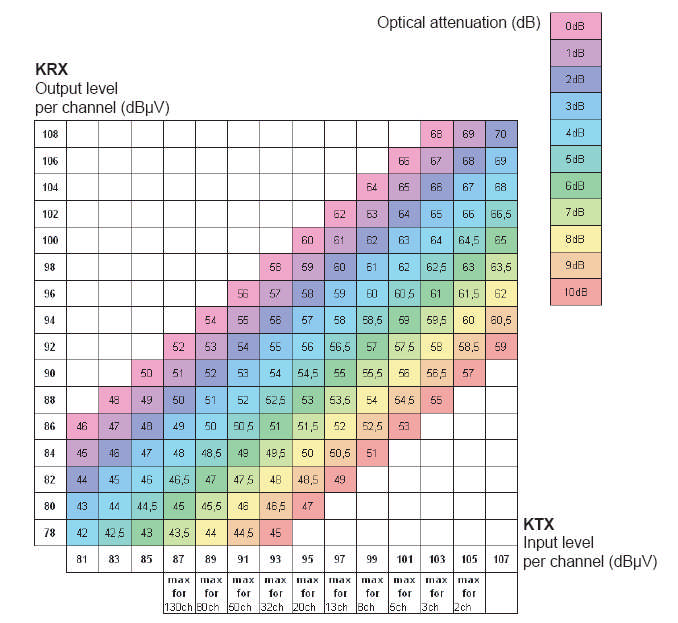

Signal to noise Ratio

Click here to download specifications
