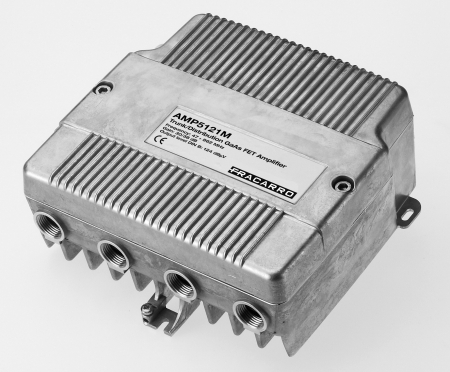

Distribution amplifiers to be used in HFC (hybrid fibre cable) networks:
• High output level and low power consumption using GaAs FET hybrid technology
• Gain and tilt adjustment using attenuators
• Integrated active or passive return path, selected by a switch
• Mains or line powered with switch mode power supply
• Die-cast aluminium housing meeting IP65 protection
• 5A AC power pass through to any terminal and 10A external AC input terminal
• Excellent surge and transient protection
Minimum configuration requires:
• 2 x diplexer filter modules MDA (see page 111), if not required replace them with two ML02 link modules
• 1 piece x interstage module MEX (see page 111), if not required replace it with one ML01 module
• The amplifier is supplied with PG11 threads, adaptors not included
ACCESSORIES AMP5121 SERIES
• Diplexer filter modules: MDA.. , 2 pieces per product
• Interstage modules: MEX.. , 1 piece per product
• Output splitter modules: MS.. , 1 piece per product
ATTENTION: the products need further accessories and connectors to function which are not included in the packaging
|
