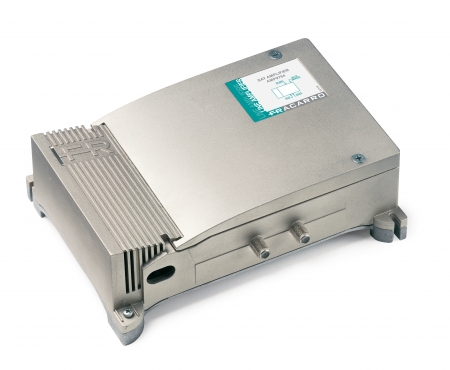

AMP9564, SAT IF Amplifier, 30-40dB Sloped Gain
AMP9564, SAT IF Amplifier, 30-40dB Sloped Gain

Mains powered amplifiers to amplify satellite signals with passive loop-through of the TV signal. To be used as a launch amplifier in IF systems or as a SAT line amplifier. They allow gain and slope adjustment in the SAT band. Cover fixed with safety screws. No DC pass from the output to the inputs. Compatible with DTT signals in COFDM modulation. For installation, supports are available (item MBX0001, see page 64) that leave a space of 19mm between the amplifier and the wall, allowing room for cables or the amplifier to be mounted in different positions. Packaging 1 pc.

• LNB power supply: 0V, 14V, 18V, 0/22Hz

• Low insertion loss in RF band

• Switch mode power supply, high efficiency and low consumption

• All the adjustments are located under the cover to prevent unauthorised access



Click here to download specifications
