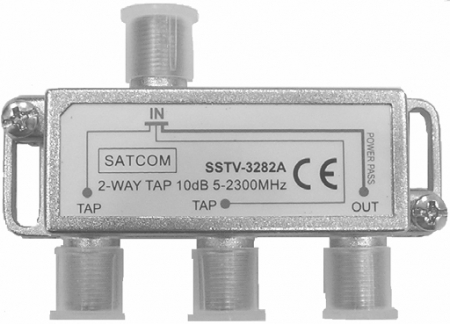

STV328 Series, SATCOM 2 Ways UBB TAP (5-2300MHz)
STV328 Series, SATCOM 2 Ways UBB TAP (5-2300MHz)
UBB TAP (5-2300MHz)
Key Feature:
•Bandwidth 5MHz to 2.3GHz for VHF, UHF and satellite bands.
•IN to OUT power passing 24VDC 0.5A max.
•Available in all ports power pass.
•RFI shielded zinc die-casting housing with nickel plated.
•Particularly designed for easy mounting cable underpass.
•All ports are F-female connectors, impedance 75 ohm.



Model FREQUENCY(MHz) TAP LOSS
(dB)		 IN-OUT
INSERTION
LOSS
(dB)		 OUT-TAP
ISOLATION
LOSS
(dB)		 TAP-TAP
ISOLATION
LOSS(dB)		 IN, OUT, TAP
RETURN LOSS
(Db)


STV-3282A-10 2-ways


 		 5 ~ 40 10.5 ± 1.5 3.5 18 25 7
40 ~ 450 10.5 ± 1.5 3 23 30 11
450 ~ 1000 11 ± 1.5 3.5 20 30 12
1000 ~ 1750 11.5 ± 1.5 3.9 18 25 12
1750 ~ 2050 12 ± 1.5 4.2 18 23 10
2050 ~ 2300 12.5 ± 2 4.5 15 20 8
DIMENSION (mm)   75 x 48 x 23
  WEIGHT (g) 45

Click here to download specifications
