RF SPLITTER (5-862MHz)
RF SPLITTER (5-862MHz)

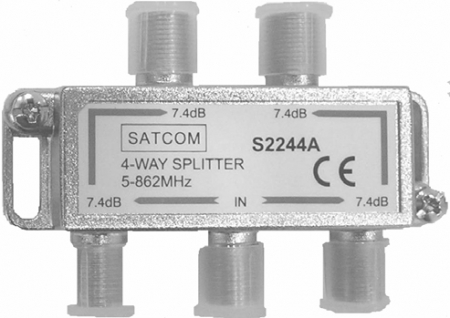

S2244A 4-Ways RF Splitter

RF SPLITTER (5-862MHz)S2244A 4-Ways RF Splitter
RF SPLITTER (5-862MHz)S2242A 2-Ways RF Splitter
Key Feature:
• High quality full band splitters for indoor use.
•Zinc die-casting housing with nickel plated.
•Particularly designed for easy mounting cable underpass.
•Built-in two grounding block.
•Screening efficiency meets CENELEC 50083-2:1998, Class B.
•All connectors are F-female, impedance 75 ohm.



MODEL FREQUENCY(MHz); INSERTION LOSS (dB max.); ISOLATION (dB min.) RETURN LOSS (dB min.) DIMENSION (mm) DIMENSION (mm) WEIGHT (g)
S2242A 2-ways 5 ~ 47 3.7 16 16 58 x 48 x 23 35
48 ~ 310 3.7 22 18
310 ~ 470 3.7 20 21.5
471 ~ 862 4 18 18



MODEL FREQUENCY(MHz); INSERTION LOSS (dB max.); ISOLATION (dB min.) RETURN LOSS (dB min.) DIMENSION (mm) DIMENSION (mm) WEIGHT (g)
S2242A 4-ways 5 ~ 47 7.6 17 18 75 x 48 x 23 47
48 ~ 310 7.6 20 18
310 ~ 470 7.6 20 17
471 ~ 862 8.5 13 13

Click here to download specifications
