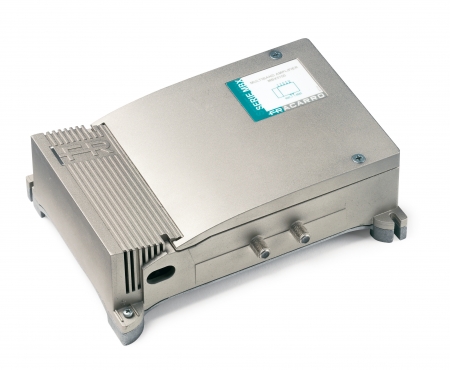

Multiband amplifiers to amplify and mix signals from several sources. Die-cast housing, totally shielded with F connectors. Separate VHF and UHF band amplification on the 119dBμV version, broadband push-pull amplification on the 124dBμV version. High gain and high output level allow the use of these products in medium to large installations. Cover fixed with safety screws. Compatible with DTT signals in COFDM modulation. Packaging 1 pc.
• High output level, up to 124dBμV
• Test point -30dB available on all products
• All the adjustments are located, under the cover to prevent unauthorised access
• Switch mode power supply, high efficiency and low consumption
• Remote power supply adjustable on each input, 100mA max.
|
General features
|
|
| Gain adjustment (dB) |
0-20 on every input |
| Linearity (dB) |
± 2 |
| Isolation between inputs (dB) |
> 20 |
| Remote power (V) |
12, 100mA total, available on any input |
| Test point (dB) |
- 30 |
| Mains voltage Vac, (Hz) |
220-240, 50-60 |
| Power supply |
Switch mode, isolation class: II |
| Impedance (Ohm) |
75 |
| Connectors |
F |
| Protection |
IP20 |
| Dimensions (LxHxW) mm |
194x143x64 |
| Operating temperature (°C) |
-10 to +55 |
